An audio gateway is a device or software role that acts as the primary source and router for audio data within a network or communication link. In the context of Bluetooth technology, the Audio Gateway (AG) is the device—such as a smartphone or computer—that connects to a telecommunications network and transmits audio to a remote headset or hands-free unit.
The term "audio gateway" often creates confusion because it applies to two distinct technological domains: consumer Bluetooth connectivity and professional Audio over IP (AoIP) networking. While the scales of these applications differ, the underlying principle remains the same. A gateway serves as the bridge between an audio source (a cellular network, a digital audio workstation, or a microphone) and the destination where that audio is processed or heard. As of 2026, the evolution of wireless standards and high-speed networking has made the role of the audio gateway more critical than ever in ensuring low-latency, high-fidelity communication.
The Bluetooth Audio Gateway: Roles and Profiles
In the Bluetooth ecosystem, roles are defined by profiles. To understand the audio gateway, one must look at the Hands-Free Profile (HFP) and the Headset Profile (HSP). In these configurations, the Bluetooth stack identifies two specific roles: the Audio Gateway (AG) and the Hands-Free (HF) or Headset (HS) unit.
The Smartphone as a Gateway
The most common example of an audio gateway is your smartphone. When connected to a car’s infotainment system or a pair of wireless earbuds, the phone performs the heavy lifting of the AG role. It maintains the connection to the cellular provider's towers (the external network) and "gateways" that incoming voice data to the Bluetooth link.
The AG is responsible for more than just passing audio. It manages call control signals, such as initiating a dial sequence, terminating a call, or handling call-waiting notifications. By 2026, most smartphones utilize Bluetooth LE Audio, which allows the audio gateway to broadcast a single stream to an unlimited number of receivers via Auracast, a significant departure from the point-to-point limitations of older Bluetooth versions.
Technical Mechanisms: SCO and eSCO Links
When an audio gateway establishes a voice connection, it typically uses a Synchronous Connection Oriented (SCO) or an Extended Synchronous Connection Oriented (eSCO) link. Unlike standard data transfers, these links prioritize timing over perfect data integrity.
Because human conversation requires real-time feedback, the AG ensures that packets are delivered at regular intervals. If a packet is lost, the AG and the receiver may use packet loss concealment to fill the gap rather than requesting a retransmission that would cause a noticeable lag. The eSCO variant, standard in modern AGs, allows for a limited number of retransmissions to improve audio quality without introducing significant latency, facilitating "wideband speech" or HD Voice.
Professional Audio Gateways in AoIP

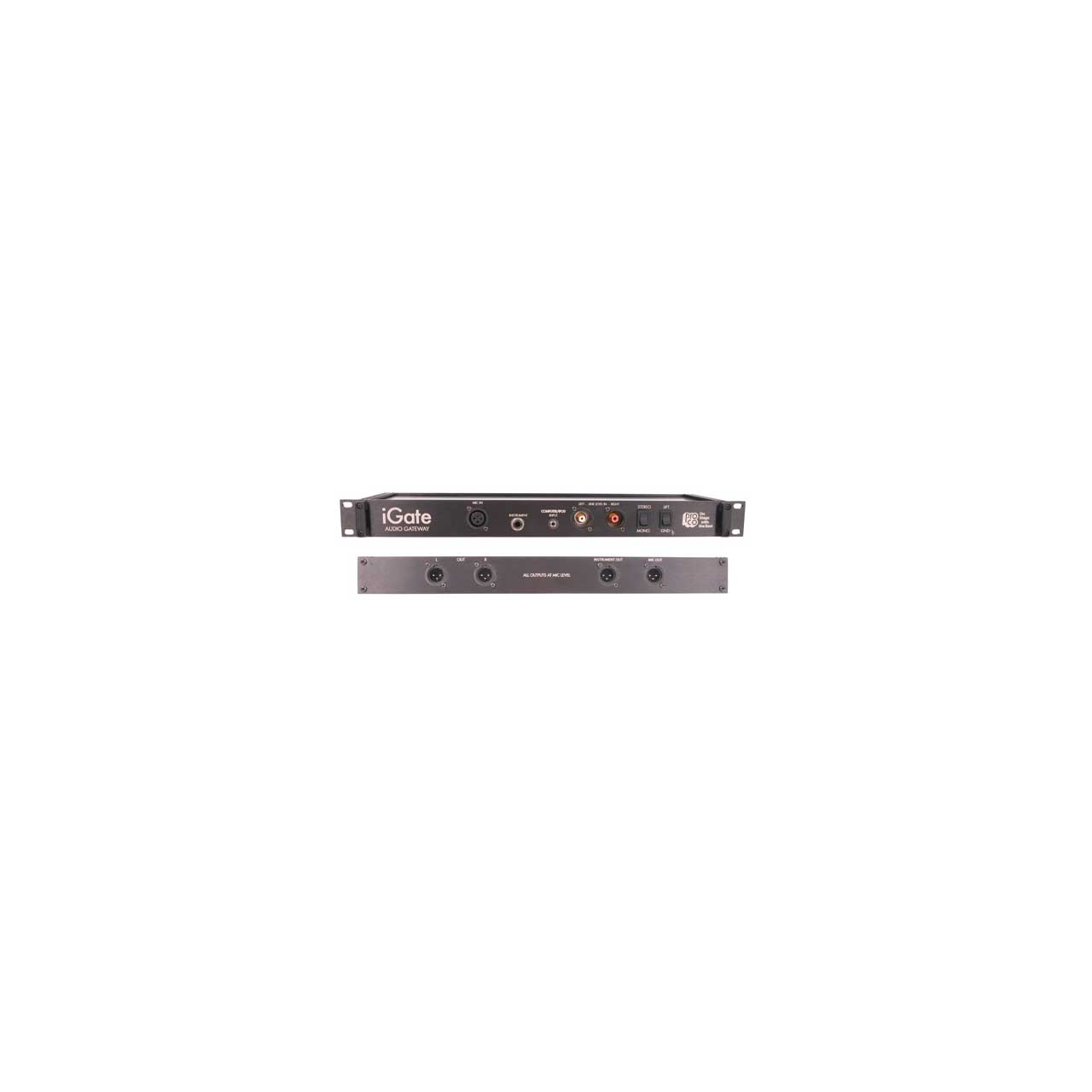

Beyond consumer electronics, the term refers to specialized hardware used in broadcasting, recording studios, and large-scale venues. In these environments, an audio gateway bridges legacy analog or digital formats (like AES3) with modern Audio over IP (AoIP) networks such as Dante, Ravenna, or AES67.
Bridging the Gap Between Formats
A professional audio gateway acts as a translator. In a 2026 broadcast facility, you might have a high-end analog microphone that needs to be routed to a mixing console located three floors away. Running a long analog cable would introduce noise and signal degradation. Instead, an audio gateway converts that analog signal into digital packets that travel over a standard Ethernet network.
These gateways are essential for interoperability. For instance, a Dante-to-AES67 gateway allows equipment from different manufacturers—which may use slightly different network protocols—to communicate seamlessly. Without these gateways, professional audio environments would remain siloed, requiring expensive, proprietary cabling for every hardware change.
Synchronization and PTP
Professional gateways rely on the Precision Time Protocol (PTP), specifically IEEE 1588-2008. This allows every gateway on a network to stay synchronized within microseconds. In an AoIP setup, if the gateway's clock drifts, the resulting audio will suffer from "clicks," "pops," or phase issues. High-quality gateways often include redundant network ports to ensure that if one cable fails, the audio stream continues uninterrupted—a feature known as hitless switching.
Key Technical Specifications of Audio Gateways
When evaluating an audio gateway, whether for consumer use or professional integration, several technical benchmarks determine its performance and reliability.
| Feature | Bluetooth Audio Gateway (Consumer) | AoIP Gateway (Professional) |
|---|---|---|
| Primary Protocol | Bluetooth HFP / HSP / LE Audio | Dante, AES67, Ravenna, ST 2110-30 |
| Connectivity | Wireless (2.4 GHz) | Wired (Ethernet/Fiber Optic) |
| Max Channels | Typically 1-2 (Mono or Stereo) | Up to 512+ channels per device |
| Latency | 20ms to 200ms (Codec dependent) | <1ms to 5ms |
| Synchronization | Internal Bluetooth Clock | PTP v2 (Precision Time Protocol) |
| Typical Range | 10 to 100 meters | Unlimited (Network-wide) |
| Primary Use | Phone calls, voice assistants | Broadcasting, Live sound, Studios |
The Impact of LE Audio and LC3 in 2026
The year 2026 marks a turning point for audio gateways due to the widespread adoption of the LC3 (Low Complexity Communication Codec). For years, the default for Bluetooth voice was the SBC or CVSD codec, which often resulted in "muffled" audio during calls.
The LC3 codec, integrated into the latest LE Audio gateways, provides significantly higher audio quality at half the bit rate of previous codecs. This efficiency offers two major benefits:
- Extended Battery Life: Because the gateway spends less power transmitting data, both the source (phone) and the receiver (earbuds) last longer.
- Multi-Stream Audio: A single audio gateway can now transmit independent, synchronized audio streams to multiple speakers or both ears of a hearing aid simultaneously, rather than relaying the signal from one earbud to the other.
Practical Implementation: Using a PC as an Audio Gateway
Many users do not realize that their desktop or laptop can function as a sophisticated audio gateway. In a remote work environment, a PC often acts as the AG for VoIP applications like Microsoft Teams, Zoom, or Slack.
Configuration Requirements
To use a PC effectively as an audio gateway, the Bluetooth adapter must support the HFP 1.7 or 1.8 specifications. Higher versions support "Wideband Speech," which is necessary for high-definition voice calls. In Windows or macOS, this is often managed automatically, but users can verify this in the Device Manager or System Profiler by checking the supported profiles of the Bluetooth radio.
Common Troubleshooting Steps
When a PC fails to act as a proper audio gateway, the issue usually stems from a "profile mismatch."
- The Problem: The user hears high-quality music but the microphone doesn't work, or the audio quality drops to "telephone quality" when the mic is activated.
- The Cause: This happens because the gateway is switching from the A2DP (Advanced Audio Distribution Profile) meant for music to the HFP (Hands-Free Profile) meant for calls. HFP prioritizes the microphone return path over audio fidelity.
- The Solution: Ensure that the specific "Hands-Free" device is selected as both the input and output in your communication software settings, rather than the "Stereo" or "Music" version of the device.
Security Considerations for Audio Gateways
As the central point of audio routing, gateways are potential targets for interception. In the Bluetooth world, the Audio Gateway manages the encryption of the wireless link.
Bluetooth Security Levels
Modern AGs use Security Mode 4, which utilizes Elliptic Curve Diffie-Hellman (ECDH) for pairing. This prevents "man-in-the-middle" attacks where a malicious actor could eavesdrop on a private conversation. Users should always ensure their gateway devices (phones and PCs) are updated to the latest firmware to patch vulnerabilities like "BlueBorne" or similar exploits that target the Bluetooth stack.
Network Isolation in Professional Settings
For professional AoIP gateways, security is handled via network segmentation. Since these gateways operate on standard Ethernet, they are often placed on a VLAN (Virtual Local Area Network). This isolates the audio traffic from the rest of the building's internet traffic, preventing accidental data collisions and protecting the audio stream from unauthorized access by other devices on the network.
The Role of Audio Gateways in Smart Home Ecosystems
In 2026, the audio gateway has moved into the walls of the modern home. Smart speakers and hubs act as gateways for whole-home audio systems. Through protocols like Matter and Thread, an audio gateway can receive a command from a voice assistant and route the audio stream to various "endpoints" across the house.
These residential gateways often incorporate "Echo Cancellation" at the gateway level. When you speak to a smart hub while music is playing, the gateway analyzes the outgoing audio signal and subtracts it from the incoming microphone signal. This allows the device to hear your voice clearly over the noise—a complex processing task that defines the modern gateway's intelligence.
Troubleshooting Common Audio Gateway Issues
Despite advancements, audio gateways can encounter several operational hurdles. Most issues relate to bandwidth congestion or protocol negotiation.
- Audio Stuttering: This is often caused by 2.4 GHz interference. Since Bluetooth AGs and Wi-Fi often share the same frequency, a busy Wi-Fi network can "drown out" the gateway's signal. Switching to a 5 GHz or 6 GHz Wi-Fi band can clear the air for the audio gateway.
- Unresponsive Call Controls: If the "answer" button on your headset doesn't work, the AG likely failed to initialize the AT command set during the handshake. Toggling Bluetooth off and on usually forces a re-negotiation of these commands.
- Latency in Professional Links: In AoIP gateways, latency is usually a result of "buffer underrun." If the network is too busy, the gateway can't fill its buffer fast enough. Increasing the "latency" setting in the gateway's configuration allows for a larger buffer, which stabilizes the audio at the cost of a slight delay.
Frequently Asked Questions
Is an audio gateway the same as a Bluetooth transmitter?
Not exactly. While a Bluetooth transmitter sends audio data, an audio gateway specifically refers to a device that connects to a network (like a phone network) and manages two-way communication profiles (HFP/HSP). A simple transmitter might only support one-way audio (A2DP) for music, whereas a gateway handles calls and control signals.
Why does my car's Bluetooth say "Audio Gateway"?
In automotive systems, the "Audio Gateway" label often appears in the settings menu to indicate that your phone is successfully paired as the source for calls and data. The car acts as the "Hands-Free" unit, and the phone acts as the "Gateway" to the outside world.
Can I have multiple audio gateways connected to one headset?
Most modern headsets support Multipoint Pairing, which allows them to connect to two audio gateways simultaneously (e.g., a laptop and a smartphone). The headset will prioritize whichever gateway receives an incoming call or starts an audio stream first.
What is the maximum range of a professional audio gateway?
In a professional AoIP setup, the range is effectively unlimited as long as the network infrastructure exists. Because the gateway converts audio to standard IP packets, the signal can be sent across a campus or even across the world with minimal latency, provided there is a high-speed fiber connection.
Does an audio gateway affect sound quality?
Yes. The gateway determines the codec used for transmission. If an old gateway only supports low-bitrate codecs, the audio will sound compressed. Modern gateways supporting LC3 or LDAC offer much higher fidelity, often indistinguishable from a wired connection.
How do I update my audio gateway?
For smartphones and PCs, updating the operating system typically updates the Bluetooth stack and gateway drivers. For professional hardware gateways, updates are usually performed through a web-based management interface or a dedicated configuration tool provided by the manufacturer.
Expert Recommendation for 2026
If you are setting up a home office or a professional studio in 2026, prioritize hardware that supports Bluetooth 5.4 or higher and LE Audio. For professional environments, ensure your gateways are AES67 compliant, as this is the "lingua franca" of modern audio networking. Choosing devices with robust gateway capabilities ensures that your audio remains clear, secure, and compatible with the wide array of devices entering the market today.
