Ventoy Linux: The Ultimate Guide to Creating Bootable USB Drives

Ventoy Linux is an open-source tool that lets you create bootable USB drives simply by copying ISO, WIM, IMG, VHD, or EFI files directly onto the storage device, eliminating the need to repeatedly reformat the drive or use complex flashing utilities.

Creating a multi-boot USB drive has traditionally been a tedious, repetitive process. Every time a new Linux distribution, security toolkit, or operating system update was released, system administrators, developers, and tech enthusiasts had to wipe their storage media, use specialized flashing utilities like Rufus, Ventoy's alternatives, or command-line tools like dd, and dedicate a partition to a single image. Ventoy completely transforms this workflow. By installing a lightweight bootloader onto your USB drive once, the device becomes capable of booting directly from raw disk images. This comprehensive guide explores how Ventoy works on Linux, its core features, installation steps, advanced configurations, and troubleshooting strategies to help you optimize your portable toolkit.

Understanding How Ventoy Works Under the Hood

To appreciate Ventoy Linux, it helps to understand the underlying architecture that sets it apart from traditional flashing utilities. Traditional tools write an image block-by-block to a partition, modifying the file system structure of the target medium to match the source image. Consequently, a traditional bootable USB drive can hold only one operating system (unless you employ complex, brittle partition-resizing hacks).

Ventoy takes a radically different approach. When you install Ventoy onto a USB drive, it partitions the media into two distinct segments:

1. The Ventoy Boot Partition: A small, hidden or system partition that stores the proprietary Ventoy bootloader files, GRUB/iPXE configurations, and plugin frameworks.
2. The Main Data Partition: Formatted as exFAT, NTFS, ext4, XFS, or Btrfs, this space is left completely accessible to the user.

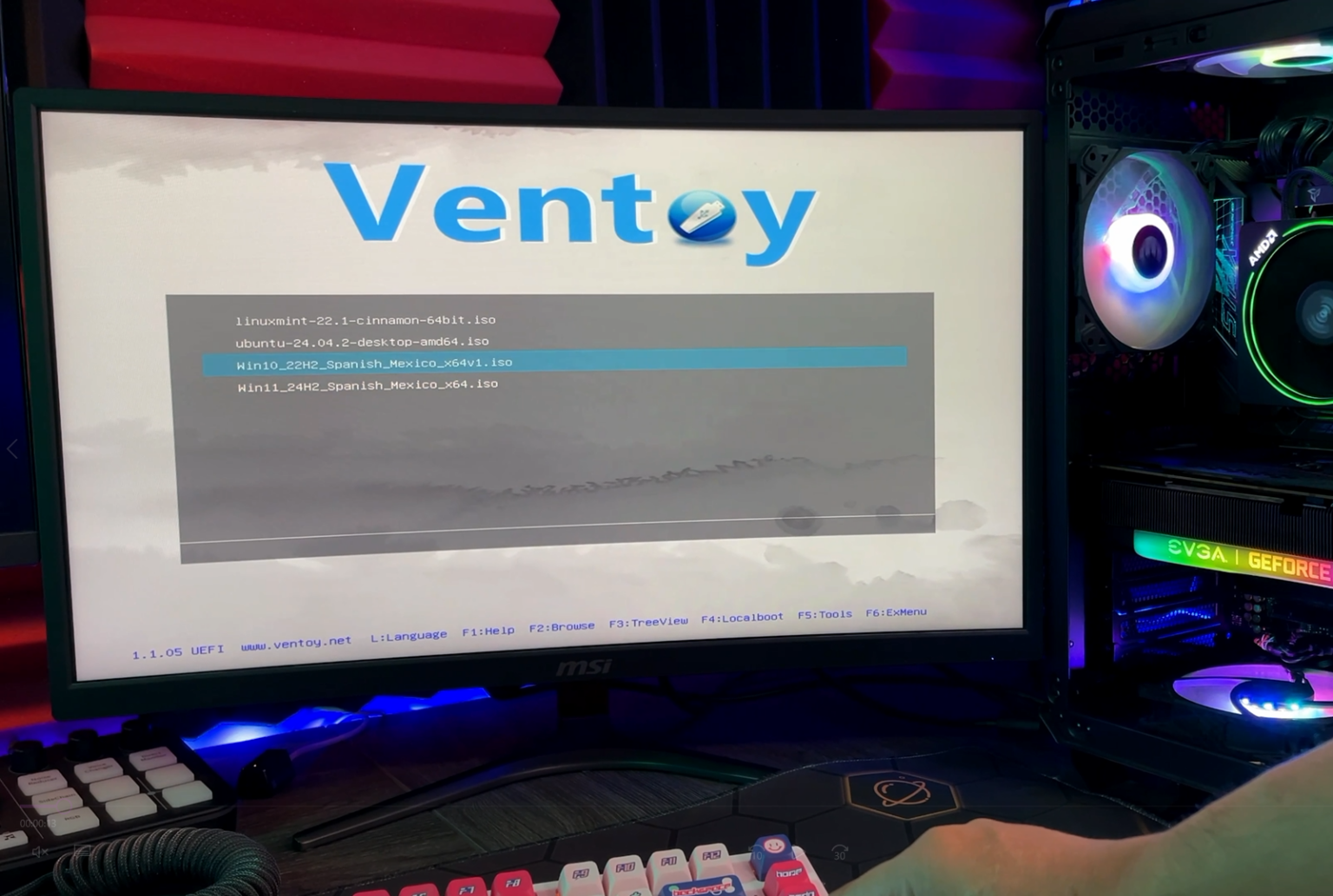

Because the main partition uses standard file systems, you do not need to "burn" an ISO. You simply copy-paste .iso, .img, .vhd, or .efi files onto the drive like a standard thumb drive. When you reboot your computer and select the Ventoy USB, its custom bootloader scans the data partition, dynamically generates a boot menu based on the files it finds, and loads the selected image into system memory (RAM) or boots it via loopback mounting.

Key Features and Advantages for Linux Users

Ventoy has become a staple utility within the Linux community due to its versatility, performance, and extensive feature set.

• Multi-Boot Capability: Store dozens of Linux distributions, Windows installers, BSD variants, and diagnostic tools on a single USB drive.
• Write Once, Update Frequently: When a new point release of Ubuntu, Fedora, or Arch Linux drops, you do not need to reformat the drive. Simply delete the old ISO file and copy the new one into its place.
• Native Linux Support: Ventoy provides a robust shell script installer (Ventoy2Disk.sh) that runs natively in terminal environments across virtually all Linux distributions.
• Extensive ISO Support: Ventoy supports hundreds of known ISO files, including major enterprise distros, lightweight recovery environments, and niche security testing platforms.
• Auto-Installation Support: Through JSON-based configuration files, Ventoy supports automated (kickstart/preseed) installations for operating systems like Ubuntu, Red Hat Enterprise Linux, and Windows.
• Persistent Storage: For Linux live distributions, Ventoy allows you to create persistent data files (ventoy_persistent.dat), ensuring that settings and installed packages are saved across reboots.

System Requirements and Prerequisites

Before installing Ventoy on Linux, ensure you have the necessary tools and environment configured properly. Because the installation process overwrites the partition table of the target device, data loss is guaranteed if you select the wrong drive.

Hardware and Software Prerequisites

• A USB flash drive or external SSD (minimum 8GB recommended, though larger capacities allow for more ISO files).
• A Linux host system (Ubuntu, Debian, Fedora, Arch Linux, openSUSE, etc.).
• Root or sudo privileges on the host system, as partitioning and raw block-device writes require administrative access.
• Essential command-line utilities typically pre-installed on Linux distributions, such as tar, util-linux (for lsblk, mkfs), and wget or curl.

Step-by-Step Installation Guide on Linux

Installing Ventoy on a Linux distribution can be accomplished via the command-line interface (CLI) script or the graphical web-based user interface. The CLI method is the most reliable and universally supported across headless servers and desktop environments alike.

Step 1: Download the Official Release

Navigate to the official Ventoy releases page on GitHub to download the latest Linux tarball package (ventoy-x.y.z-linux.tar.gz). You can accomplish this directly via the terminal using wget:

wget https://github.com/ventoy/Ventoy/releases/download/v1.0.99/ventoy-1.0.99-linux.tar.gz

(Note: Replace 1.0.99 with the most current version number available at the time of your deployment.)

Step 2: Extract the Tarball Archive

Extract the downloaded archive using the tar utility and navigate into the newly created directory:

tar -zxvf ventoy-1.0.99-linux.tar.gz cd ventoy-1.0.99

Step 3: Identify Your Target USB Drive

Insert your USB flash drive and identify its block device name using lsblk or fdisk -l:

lsblk

Examine the output carefully (e.g., /dev/sdb, /dev/sdc, or /dev/nvme...). Ensure you correctly identify your USB drive by its capacity and vendor name. Warning: Selecting your primary operating system drive will result in catastrophic data loss.

Step 4: Run the Ventoy Installation Script

Execute the installation script with sudo, passing the target device path as an argument. For example, if your USB drive is located at /dev/sdb:

sudo sh Ventoy2Disk.sh -i /dev/sdb

The script will prompt you to confirm the installation twice because all existing data on the target drive will be erased. Type y and press Enter to proceed. Once complete, Ventoy will successfully partition and format your USB drive.

Alternative: Using the Ventoy Web UI

If you prefer a graphical interface, Ventoy includes a built-in web management tool. Run the following command from the extracted directory:

sudo sh VentoyWeb.sh

This will launch a local web server and output a URL (typically http://127.0.0.1:24680). Open this link in any web browser to access an intuitive GUI where you can select your USB device, configure options (such as Secure Boot or partition style), and install Ventoy with a single click.

Populating and Organizing Your Bootable Drive

Once Ventoy is installed, your USB drive will appear in your file manager as a standard storage volume (typically labeled "Ventoy"). Organizing your ISO files is straightforward, but adhering to best practices ensures seamless booting.

Directory Structures and File Naming

You can copy ISO files directly to the root of the drive or organize them into subfolders for neatness. Ventoy automatically scans subdirectories recursively up to several levels deep.

• Naming Conventions: Avoid using spaces, special characters, or non-ASCII symbols in your ISO filenames if possible. While Ventoy handles most names fine, certain legacy BIOS configurations or specific ISO bootloaders can fail if file paths contain spaces.
• File Types: Ensure your files match supported formats. Ventoy officially supports ISO, WIM, IMG, VHD(x), and EFI formats. If you attempt to boot an unsupported file type, the Ventoy menu may hide it or fail to launch it.

Advanced Configuration and Customization

Ventoy offers a powerful configuration framework via a JSON file named ventoy.json. This file allows you to customize the boot menu theme, enforce password protection, set default boot timeout values, and enable advanced persistence options.

Creating a ventoy.json File

To configure advanced settings, create a folder named ventoy on the root of your data partition, and inside it, create a file named ventoy.json. A basic configuration template looks like this:

{ "control": [ {"VTOY_DEFAULT_MENU_TIMEOUT": 10}, {"VTOY_WINDOW_TITLE": "Enterprise Multi-Boot System"}, {"VTOY_SORT_KEY": "version"} ], "theme": { "file": "/ventoy/theme/dark_knight/theme.txt", "screen_resolution": "1920x1080" } }

Setting Up Persistence for Linux Distributions

Live Linux distributions run in volatile RAM by default, meaning any changes you make disappear upon reboot. Ventoy solves this with persistence plugins.

1. Download a persistence creation script or generate a persistence image file (.dat) using Ventoy's official helper tools.
2. Place the persistence data file in the root directory or a specific folder.
3. Configure the JSON file to map the persistence file to the corresponding distribution ISO.

Troubleshooting Common Ventoy Issues

While Ventoy is remarkably reliable, certain hardware and firmware configurations can introduce hurdles. Review the following troubleshooting steps to resolve frequent problems.

Secure Boot Verification Failures

When booting on modern UEFI systems with Secure Boot enabled, you may encounter an error stating that the binary is blocked by the security policy.

• Solution 1: Enroll the Ventoy Secure Boot public key (ENROLL_THIS_KEY_IN_BIOS.cer) during the first-time prompt on the Ventoy boot screen.
• Solution 2: Temporarily disable Secure Boot in your motherboard's UEFI/BIOS settings if corporate or institutional policies permit.

ISO Fails to Boot or Freezes

If a specific operating system image hangs during the boot process:

• Check ISO Integrity: Verify the SHA-256 checksum of your downloaded ISO file against the vendor's official published hash. Corrupted downloads are the leading cause of boot failures.
• Switch Boot Mode (UEFI vs. Legacy): Some older operating systems or recovery tools only boot correctly under Legacy BIOS (CSM) mode, while modern distributions require UEFI. Toggle your motherboard's boot mode if the ISO fails to initialize.
• Use Ventoy's Grub Mode: Press F4 on the Ventoy boot menu to switch between normal boot mode and alternative memory-disk mounting modes (such as memdisk mode).

Comparative Overview: Ventoy vs. Traditional Bootable USB Tools

To help you decide whether Ventoy is the right tool for your system administration workflow, review the following comparison matrix evaluating Ventoy against traditional flashing utilities.

Conclusion and Next Actions

Ventoy Linux redefines how system administrators, developers, and tech enthusiasts manage bootable media. By removing the repetitive formatting cycle and enabling drag-and-drop ISO management, it saves time and reduces hardware wear on USB drives. To get started, download the latest release from the official repository, verify your target block device carefully using lsblk, run the installation script, and populate your drive with your preferred Linux distributions and recovery tools.
