A comprehensive US rail map provides a visual and structural overview of the nation's vast rail transportation network, distinguishing between intercity passenger rail systems operated by Amtrak, commuter rail services, and the extensive freight rail corridors managed by Class I railroads.
The rail transportation network of the United States represents a complex, multi-layered system comprising tens of thousands of track miles dedicated to moving both passengers and freight. Understanding a US rail map requires looking past a simple graphic lines-and-stations model; it demands an appreciation of how public passenger networks intersect with private freight infrastructures. Whether you are planning an intercity journey across the continent, studying logistics corridors, or analyzing regional commuter lines, navigating this infrastructure effectively involves understanding the distinct operational tiers that make up the American rail grid.
Structure and Major Tiers of the US Rail Network
Unlike many European or Asian rail networks characterized by unified national high-speed systems, the United States rail network is heavily decentralized. The network is fundamentally split between freight operations—which own the vast majority of the physical track miles—and passenger services that operate primarily by running over these freight-owned lines.

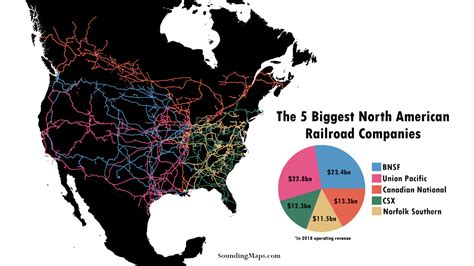

The primary tier consists of Class I freight railroads, which command nearly 140,000 miles of track across the country. Companies such as Bunion Pacific, Norfolk Southern, CSX Transportation, and BNSF Railway control the arterial corridors connecting major ports, manufacturing hubs, and agricultural centers. Passenger services must coordinate their timetables around these heavy freight movements, introducing unique operational dynamics that influence travel times and route availability.
The second tier comprises intercity passenger rail, operated nationally by the National Railroad Passenger Corporation, commonly known as Amtrak. Amtrak connects over 500 destinations across 46 states and parts of Canada. Its network is bifurcated into two distinct operational models: the high-density, electrified Northeast Corridor (NEC) between Boston, New York, and Washington, D.C., where Amtrak owns much of the infrastructure, and the long-distance national network routes that operate on host freight railroads.
The third tier consists of regional commuter rail and urban transit systems. Managed by local transit authorities—such as Metra in Chicago, the Long Island Rail Road (LIRR) in New York, or Metrolink in Southern California—these networks focus on moving suburban workforce populations into major metropolitan cores. While distinct from intercity systems, commuter lines often share terminals and tracks with Amtrak and freight carriers in shared urban rail hubs.
Passenger Rail: Amtrak’s National and Regional Corridors
When examining a passenger-focused US rail map, routes are typically divided into two categories: state-supported/corridor services and long-distance trains.
State-supported corridors usually cover distances under 500 miles, linking regional economic centers with multiple daily frequencies. Examples include the Cascades in the Pacific Northwest, the Pacific Surfliner in California, and various Midwest regional services radiating out of Chicago. These corridors often feature dedicated state funding partnerships aimed at increasing frequency, improving station infrastructure, and reducing travel times.
Long-distance trains, conversely, serve as the heritage backbone of the American passenger rail network. Operating over spans of thousands of miles, routes like the Empire Builder (Chicago to Seattle/Portland), the California Zephyr (Chicago to San Francisco), and the Sunset Limited (New Orleans to Los Angeles) provide transcontinental connectivity. While celebrated for their scenic value, these routes face significant schedule vulnerabilities due to freight traffic congestion on host railroad lines.
| Route Category | Average Distance | Primary Operational Challenge | Key Federal/State Oversight |
|---|---|---|---|
| Northeast Corridor (NEC) | Under 300 miles | Aging infrastructure, high traffic density | Federal Railroad Administration (FRA) / Amtrak |
| State-Supported Corridors | 100 – 500 miles | Slot availability on host freight tracks | State Departments of Transportation / Amtrak |
| Long-Distance Network | 500 – 2,500+ miles | Freight train dispatching priority delays | Amtrak / Host Class I Railroads |
Freight Rail Corridors and Infrastructure Complexity

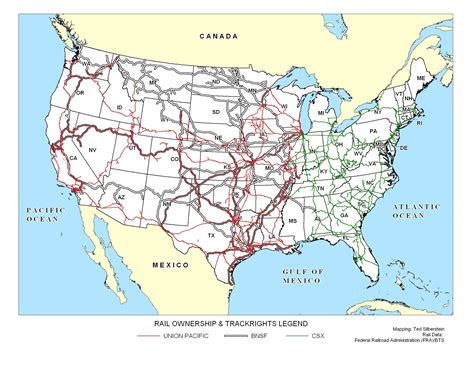

An accurate US rail map must account for freight corridors, as freight operations dictate the physical capacity and geographic reach of the entire rail system. Class I railroads are categorized by annual operating revenues and are regulated by the Surface Transportation Board (STB).
Freight maps highlight several critical transcontinental bottlenecks and gateways. Chicago and St. Louis serve as the primary interchange gateways where eastern and western rail networks meet, requiring extensive physical transfers of cargo containers and railcars. Similarly, coastal ports in Los Angeles, Long Beach, New York-New Jersey, and Savannah rely on high-capacity intermodal rail corridors to move international trade inland.
The physical infrastructure of these freight lines includes heavy-haul corridors designed for double-stack container trains, specialized coal and grain unit trains, and hazardous materials transport. Unlike passenger trains that prioritize speed and schedule adherence, freight lines prioritize axle weight capacity, fuel efficiency, and gross ton-miles hauled.
Commuter Rail and Urban Transit Integration
Navigating regional rail maps requires understanding how commuter networks interface with intercity systems. In major metropolitan areas, central stations act as multimodal hubs. For instance, Chicago’s Union Station and Philadelphia’s William H. Gray III 30th Street Station host both high-speed or long-distance Amtrak trains and dense webs of local commuter rail.
Commuter rail systems generally operate on a hub-and-spoke model, bringing suburban commuters into downtown terminals during morning peak hours and returning them in the evening. Scheduling on these lines is tightly integrated with regional economic activity, meaning weekend and off-peak service frequencies are often substantially lower than weekday offerings. Passengers utilizing a comprehensive regional transit map must cross-reference schedules from multiple independent transit agencies, as fare structures, ticketing apps, and platform assignments frequently differ between Amtrak, commuter rail, and local rapid transit (subways/light rail).
Comparing US Rail Map Types and Applications
Different maps serve different user needs. Selecting the appropriate visual reference depends entirely on whether the objective is travel planning, logistics analysis, or historical research.
- User Objective
- Intercity Travel -> Amtrak System Map (Passenger Routes & Stations)
- Daily Commuting -> Regional Transit Agency Maps (Commuter Rail)
- Cargo Logistics -> Class I Freight Network Maps (STB / Association of American Railroads)

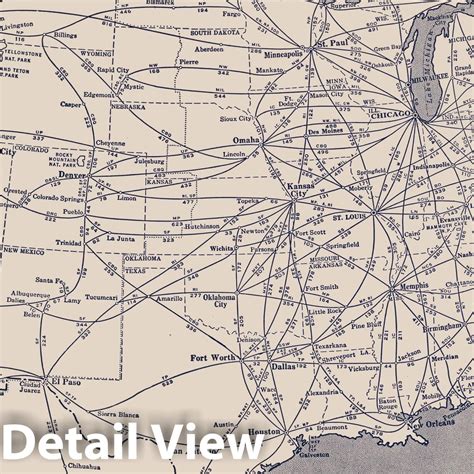

- Historic / Abandoned -> Cartographic Archives & Abandoned Right-of-Way Databases
1. Intercity Passenger Maps
- Primary Source: Official Amtrak system maps available via Amtrak Routes.
- Best For: Planning cross-country trips, identifying station amenities, and viewing connecting Thruway bus services.
- Limitations: Do not display freight-only tracks or detailed local commuter connections.
2. Freight and Infrastructure Maps
- Primary Source: Surface Transportation Board (STB) mapping resources and the Association of American Railroads (AAR).
- Best For: Supply chain analysis, industrial siting, and understanding track ownership.
- Limitations: Generally lack passenger station detail and public ticketing information.
3. Comprehensive Multi-Modal GIS Maps
- Primary Source: Department of Transportation National Transportation Atlas Database (NTAD).
- Best For: Geographic Information System (GIS) professionals, researchers, and urban planners requiring precise spatial coordinates of all track centerlines.
- Limitations: Requires specialized GIS software or data viewers to parse effectively.
Frequently Asked Questions
Can I travel across the entire United States using only passenger trains?
Yes, transcontinental rail travel is possible using Amtrak's long-distance network, though routes often require transfers at major hubs like Chicago or New Orleans. Because long-distance trains typically operate once per daily direction, itineraries require careful advance planning and flexibility regarding schedule adherence.
Why do Amtrak trains experience significant delays on long-distance routes?
Most Amtrak long-distance trains operate on tracks owned, maintained, and dispatched by private freight railroads. While federal law grants passenger trains statutory preference over freight trains, logistical challenges, track congestion, and freight train length frequently result in operational delays.
Are high-speed rail lines operational in the United States?
True high-speed rail—defined internationally as top speeds exceeding 150 mph on dedicated tracks—is currently limited to Amtrak’s Acela service on the Northeast Corridor, which reaches speeds up to 150 mph on select segments. Other projects, such as the California High-Speed Rail system, are under varying stages of construction and environmental review.
How do I find commuter rail connections that link with Amtrak stations?
Major intercity stations feature integrated terminal guides provided by local transit authorities and Amtrak. Digital journey planners and official regional transit maps display connecting subway, light rail, and commuter rail platforms located within or adjacent to the primary station building.
Next Steps and Practical Verification
When planning a rail-based journey or conducting logistical research across the United States, always verify route statuses directly through official operational portals rather than relying solely on static map graphics. Rail lines are subject to seasonal schedule adjustments, engineering work, and weather-related service disruptions. Consult the Federal Railroad Administration or specific carrier websites for real-time network alerts, track maintenance advisories, and ticketing availability before finalizing travel itineraries or shipping manifests.
